Intel NCU上にインストールしたESXi 7.0U2aに Buffalo USB-NICをセットする

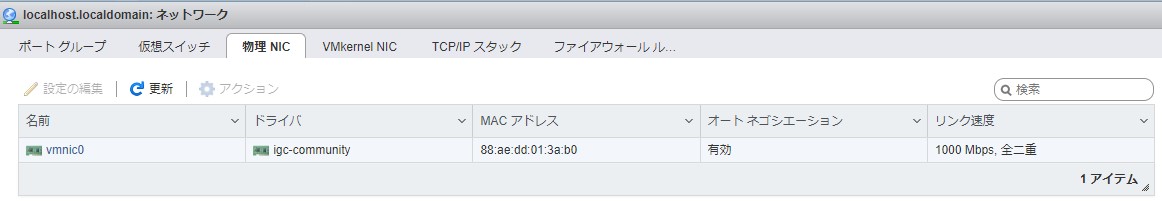

Intel NCU上にインストールしたESXi 7.0U2a に Buffalo の USB-NIC LUA4-U3-AGT-BK を取り付けてみましたが、認識しませんでした。
ググるとドライバをインストールする方法がありましたので、試してみます。
参考:
tech-mmmm.blogspot.com
tekunabe.hatenablog.jp
ESXiのシェルかSSHにログインして、NICの認識状態を確認します。
ここではSSHで確認します。
[root@localhost:~] esxcfg-nics -l Name PCI Driver Link Speed Duplex MAC Address MTU Description vmnic0 0000:58:00.0 igc-community Up 1000Mbps Full 88:ae:dd:01:3a:b0 1500 Intel Corporation Ethernet Controller I225-V
AX88179という名前でUSB-NICは認識はされているようです。
[root@localhost:~] lsusb Bus 001 Device 001: ID 0e0f:8003 VMware, Inc. Root Hub Bus 002 Device 001: ID 0e0f:8003 VMware, Inc. Root Hub Bus 002 Device 002: ID 05af:0507 Jing-Mold Enterprise Co., Ltd Bus 002 Device 003: ID 0b95:1790 ASIX Electronics Corp. AX88179 Gigabit Ethernet
USB-NICドライバをダウンロード
以下のサイトからUSB-NICドライバをダウンロードします。
flings.vmware.com
使用しているESXiのバージョンに合ったドライバをダウンロードします。
コマンドでドライバのインストールを行います。
[root@localhost:~] esxcli software vib install -d /tmp/ESXi702-VMKUSB-NIC-FLING-47140841-component-18150468.zip Installation Result Message: The update completed successfully, but the system needs to be rebooted for the changes to be effective. Reboot Required: true VIBs Installed: VMW_bootbank_vmkusb-nic-fling_1.8-3vmw.702.0.20.47140841 VIBs Removed: VIBs Skipped:
ESXiを再起動します。

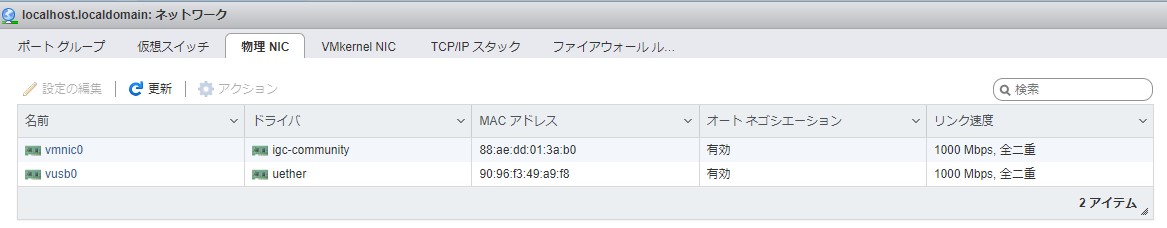

Web管理コンソールから確認します。
認識されているようです。
SSHから確認しても、認識されています。
[root@localhost:~] esxcfg-nics -l Name PCI Driver Link Speed Duplex MAC Address MTU Description vmnic0 0000:58:00.0 igc-community Up 1000Mbps Full 88:ae:dd:01:3a:b0 1500 Intel Corporation Ethernet Controller I225-V vusb0 Pseudo uether Up 1000Mbps Full 90:96:f3:49:a9:f8 1500 ASIX Elec. Corp. AX88179
<備考>
試していませんが、ESXiのオフラインバンドルからインストールUSBメモリを作成する際に、ドライバを組み込んでおく方法もあるようです。
以上です。おつかれさまでした。
